Step 1: Choose a Backup Storage Location

Select where you want to save the system image backup. Common options include:

• External hard drive or SSD
• Network Attached Storage (NAS)
• Shared network folder
• Cloud storage (if supported by your backup software)

Step 2: Check Available Storage Space

Ensure the destination has enough free space.

Recommended: Have at least twice the amount of used data from your system drive available.

Step 3: Connect and Prepare the Backup Device

• Plug in the external drive or connect to the network location.
• Confirm the device is recognized by your computer.
• Format the drive if required (warning: formatting may erase existing data).

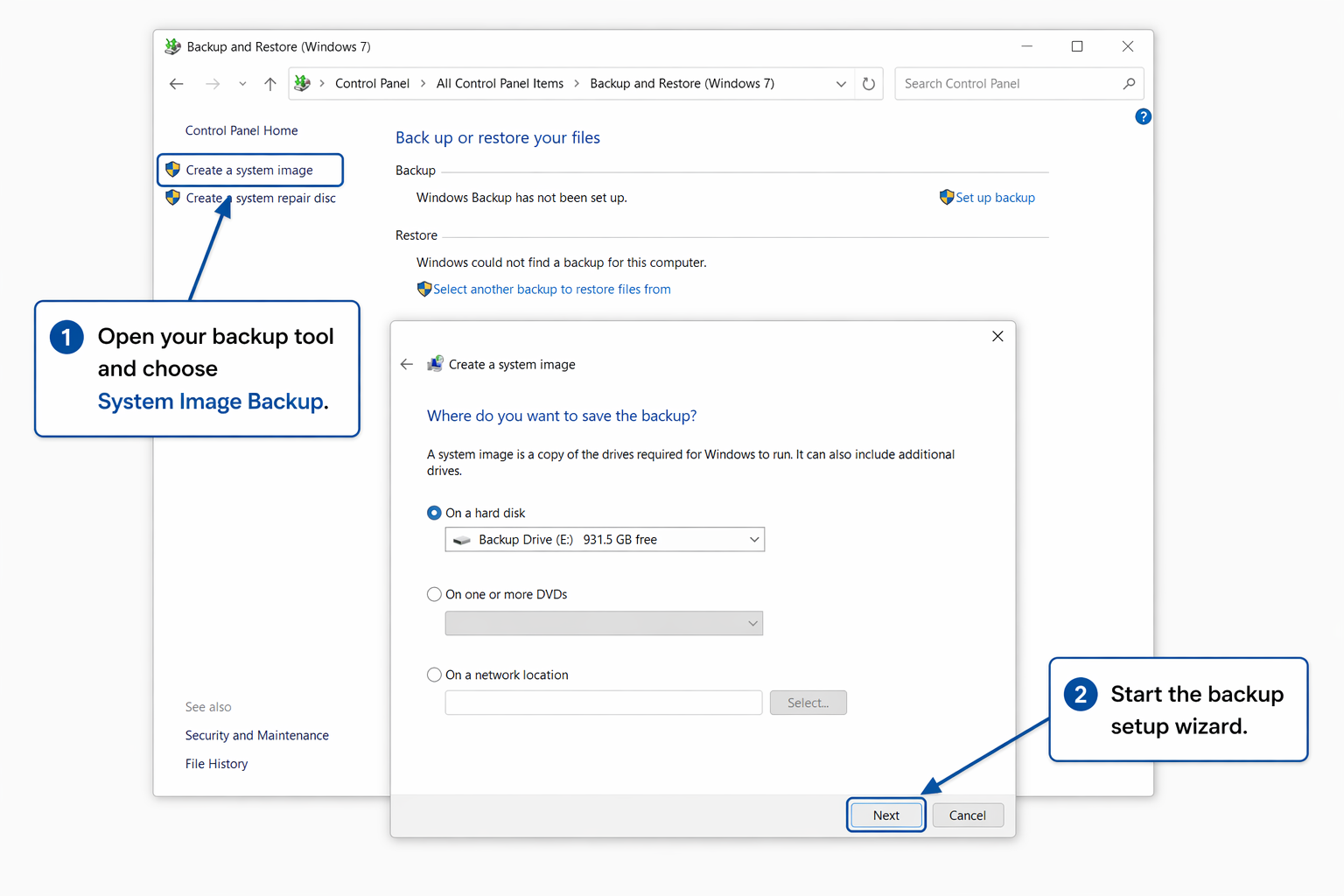

Step 4: Open Your Backup Software

Use either:

• Your operating system’s built-in backup tool, or
• A trusted third-party backup application

Step 5: Select “System Image” or “Full System Backup”

Choose the option that creates a complete backup of:

• Operating system
• Installed applications
• System settings
• Personal files

Step 6: Choose the Source Drive(s)

Most tools automatically select required system partitions.

Advanced users may also include additional drives depending on recovery needs.

Step 7: Select the Backup Destination

Choose the external drive, NAS, shared folder, or cloud location where the backup image will be stored.

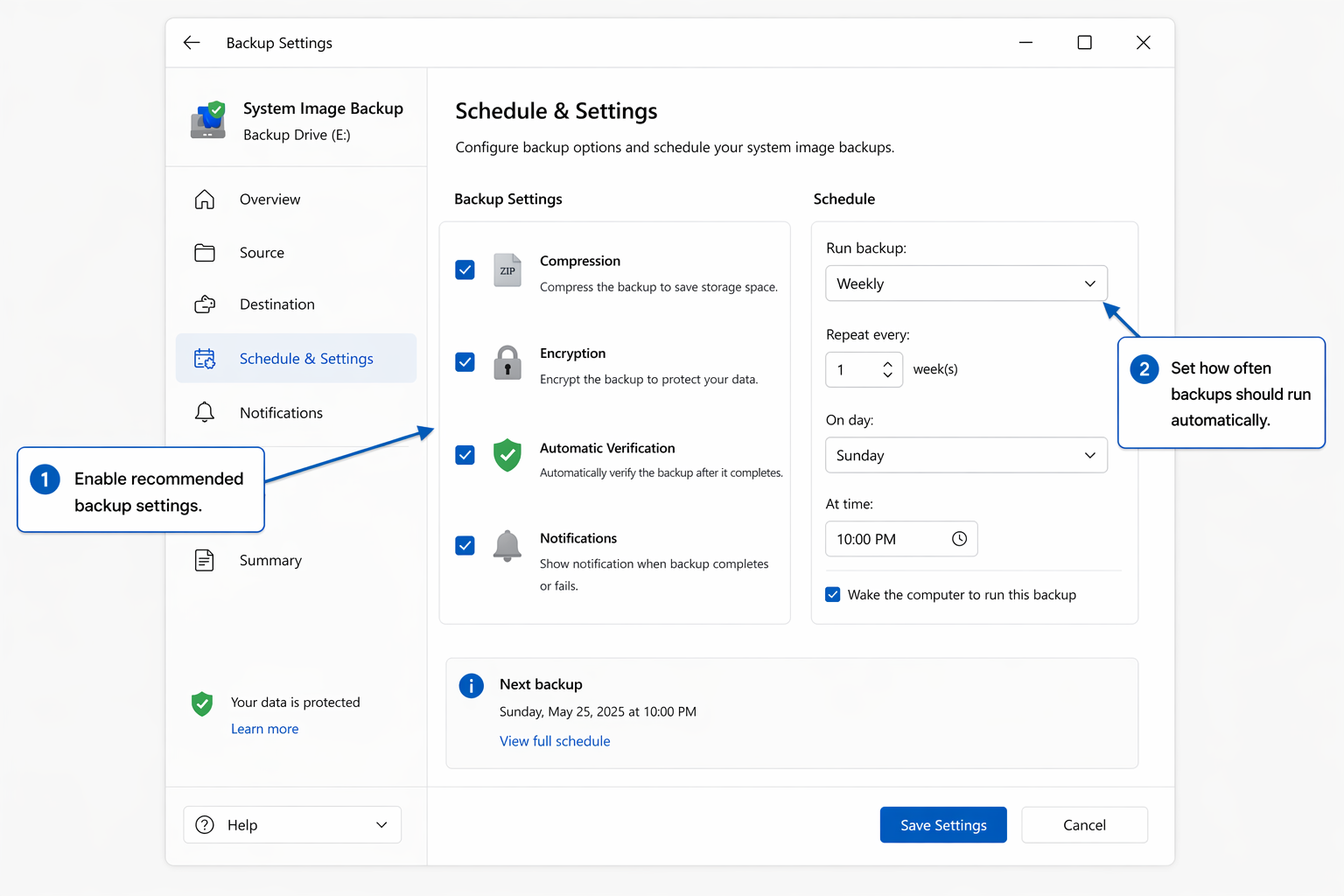

Step 8: Configure Backup Settings

Recommended options include:

• Compression to save space
• Encryption for security
• Automatic verification after backup
• Notifications or email alerts

Step 9: Set a Backup Schedule

Choose a schedule based on how often your system changes:

• Daily – Frequent business use
• Weekly – Standard users
• Monthly – Light-use systems

Step 10: Start the Backup Process

Run the backup and allow it to complete without interruption.

Tip: The first full image usually takes longer than future backups.

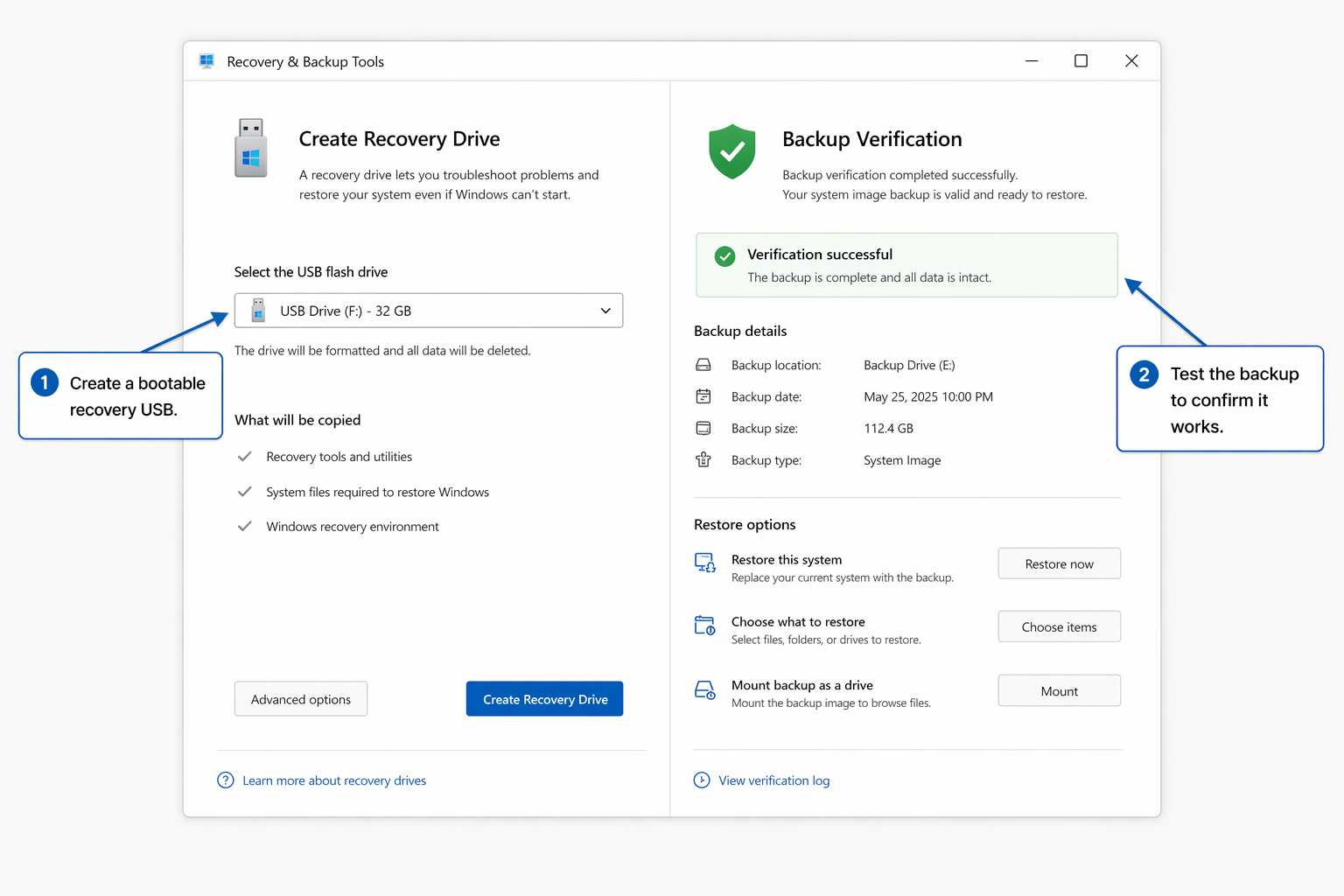

Step 11: Create Recovery Media

Create a bootable USB or recovery disc. This allows you to restore the backup if your computer cannot start normally.

Step 12: Test the Backup

Verify the image file or run a recovery simulation.

Advanced users may test restoring the image to:

• A spare computer
• A virtual machine
• A secondary drive

Step 13: Store Backups Securely

Follow the 3-2-1 backup rule when possible:

• 3 copies of your data
• 2 different storage types
• 1 copy stored offsite

Quick Checks to Try First

• Restart Your Computer
  Reboot your system and try the backup again.
• Reconnect the Backup Drive
  Disconnect and reconnect external drives, or verify network storage is online.
• Free Up Storage Space
  Delete unnecessary files or move older backups to another location.
• Run the Backup as Administrator
  Some tools require elevated permissions to copy system files.
• Close Other Programs
  Shut down large applications that may slow down or interrupt the process.
• Check Your Internet Connection
  If using cloud or network storage, make sure your connection is stable.

Fixing Configuration Problems

• Check Disk Health
  Run your operating system’s disk repair utility to scan for bad sectors or file system errors.
• Review Error Logs
  Open the backup software logs to identify specific error codes or failed steps.
• Verify Snapshot Services
  Ensure services such as Volume Shadow Copy Service (VSS) or equivalent snapshot tools are running properly.
• Update Drivers and Firmware
  Install the latest storage drivers, chipset drivers, and firmware updates for your backup devices.
• Exclude Non-Essential Partitions
  Remove temporary or unused drives from the backup job if they are unnecessary.
• Test Network Performance
  Slow or unstable network connections can interrupt backups to NAS or shared folders.
• Use Multiple Backup Versions
  Keep older images in case the latest backup is damaged or contains system problems.
• Perform a Test Restore
  The most reliable way to confirm a backup works is to restore it in a safe test environment.

• The first backup takes the longest: Initial full image backups are usually larger and slower.
• Keep devices powered on: Connect laptops to power during backup jobs.
• Do not disconnect storage during backup: This may corrupt the image file.
• Use encryption when possible: Especially important for portable backup drives.
• System images are not a replacement for file backups: Keep separate backups for frequently changing files.
• Create more than one backup copy: Redundancy improves protection.
• Test restores regularly: A backup is only useful if it can be restored successfully.
• Store backups securely: Protect against theft, fire, accidental deletion, and ransomware.
