How to Set Up Local Network Storage Backups for Safe and Reliable File Protection

How to Set Up Local Network Storage Backups for Safe and Reliable File Protection

Local network storage backups help protect your files, shared folders, and business data from accidental deletion, hardware failure, ransomware, and unexpected system issues. By using a NAS (Network Attached Storage) device or shared network drive, you can automate backups and restore files quickly when needed. This guide explains how to set up, manage, and troubleshoot local network storage backups for both beginners and advanced users.

Backup Implementation Steps

Beginner Setup

Step 1: Choose a Backup Storage Device

Select a NAS device or another computer with shared storage space. Make sure it has enough capacity for your current files and future growth.

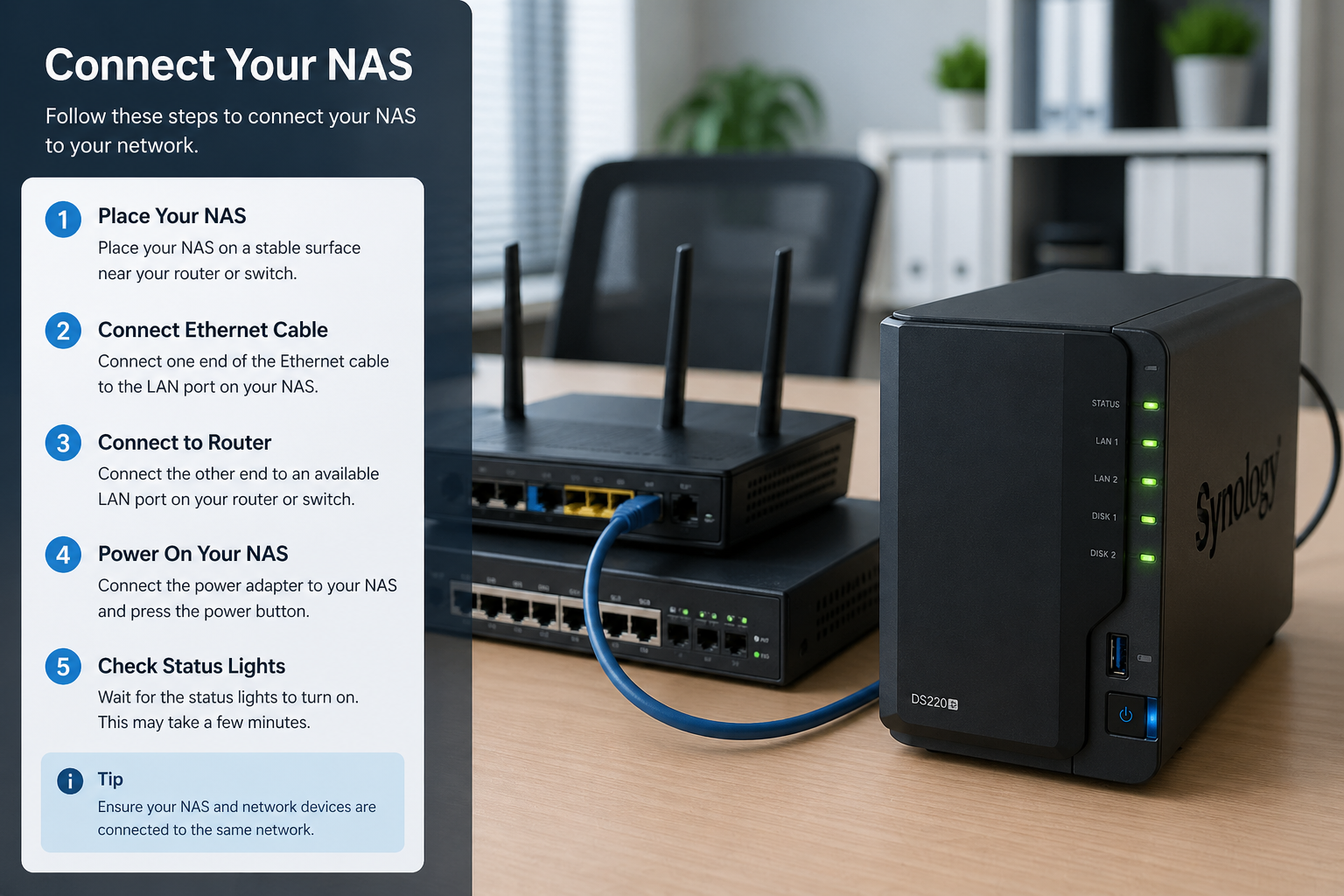

Step 2: Connect the Device to Your Network

Use an Ethernet cable to connect the storage device to your router or network switch, then power it on.

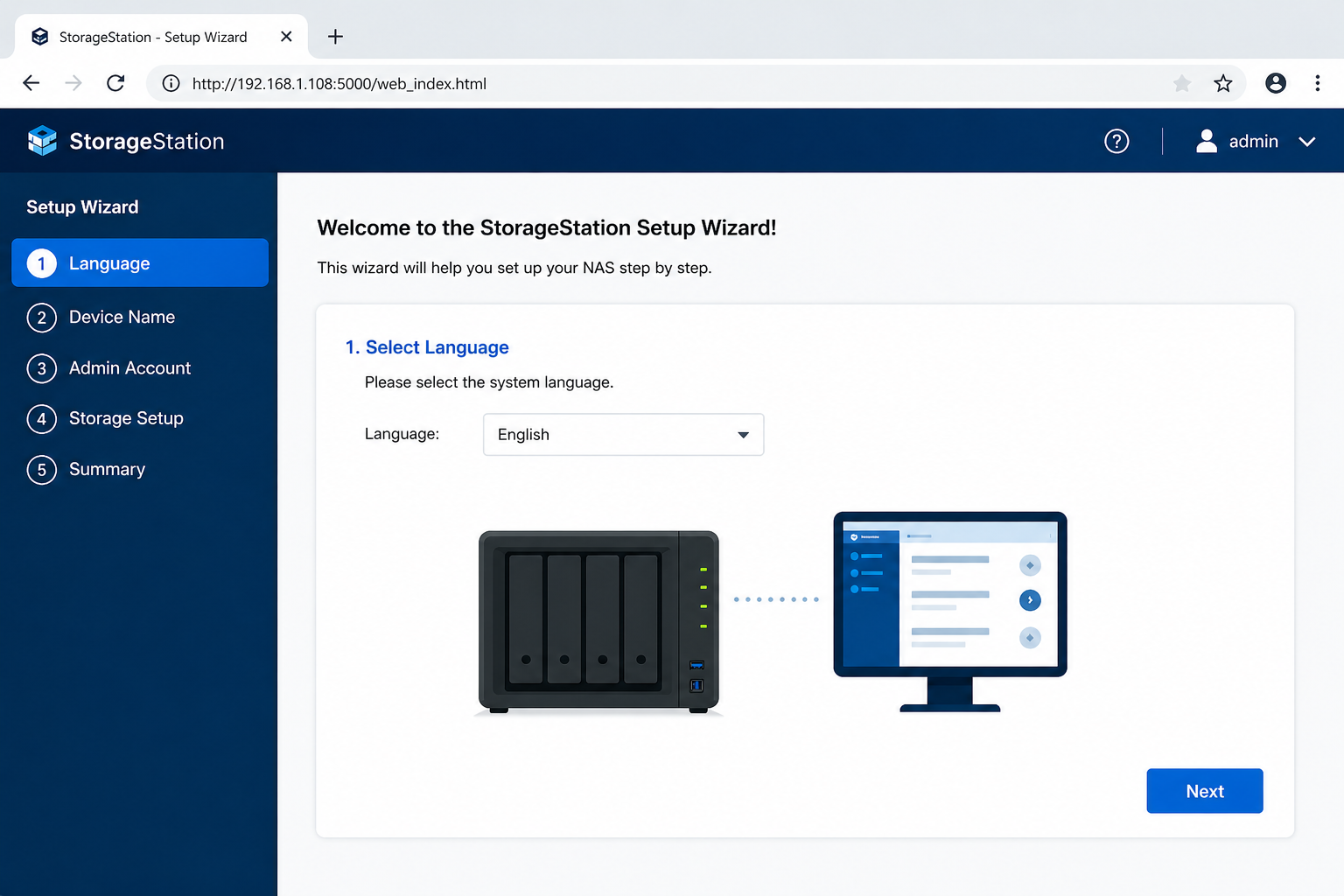

Step 3: Complete the Initial Setup

Open the manufacturer’s setup page in your web browser and follow the installation wizard.

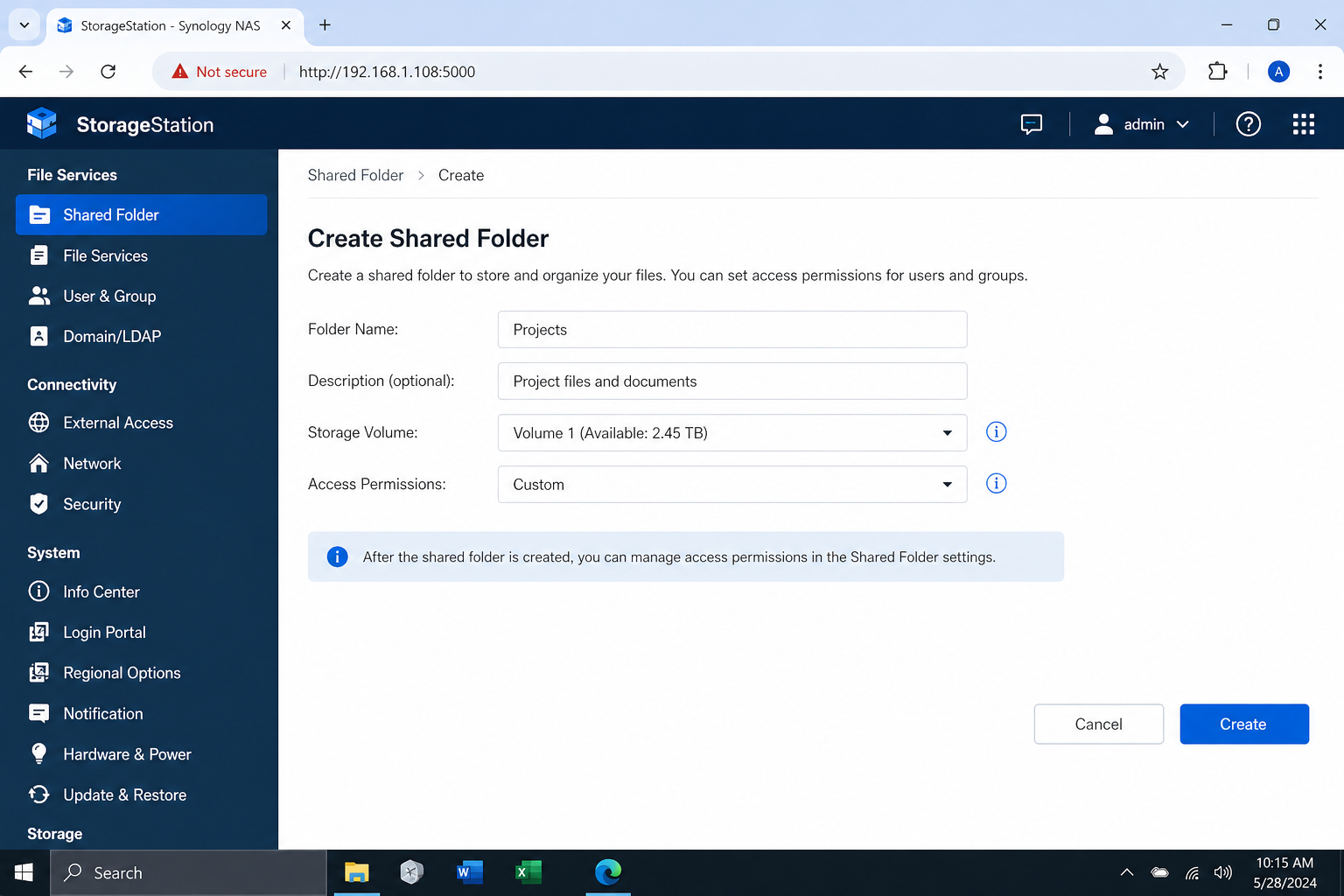

Step 4: Create Shared Backup Folders

Create separate folders for each computer, employee, or department to keep backups organized.

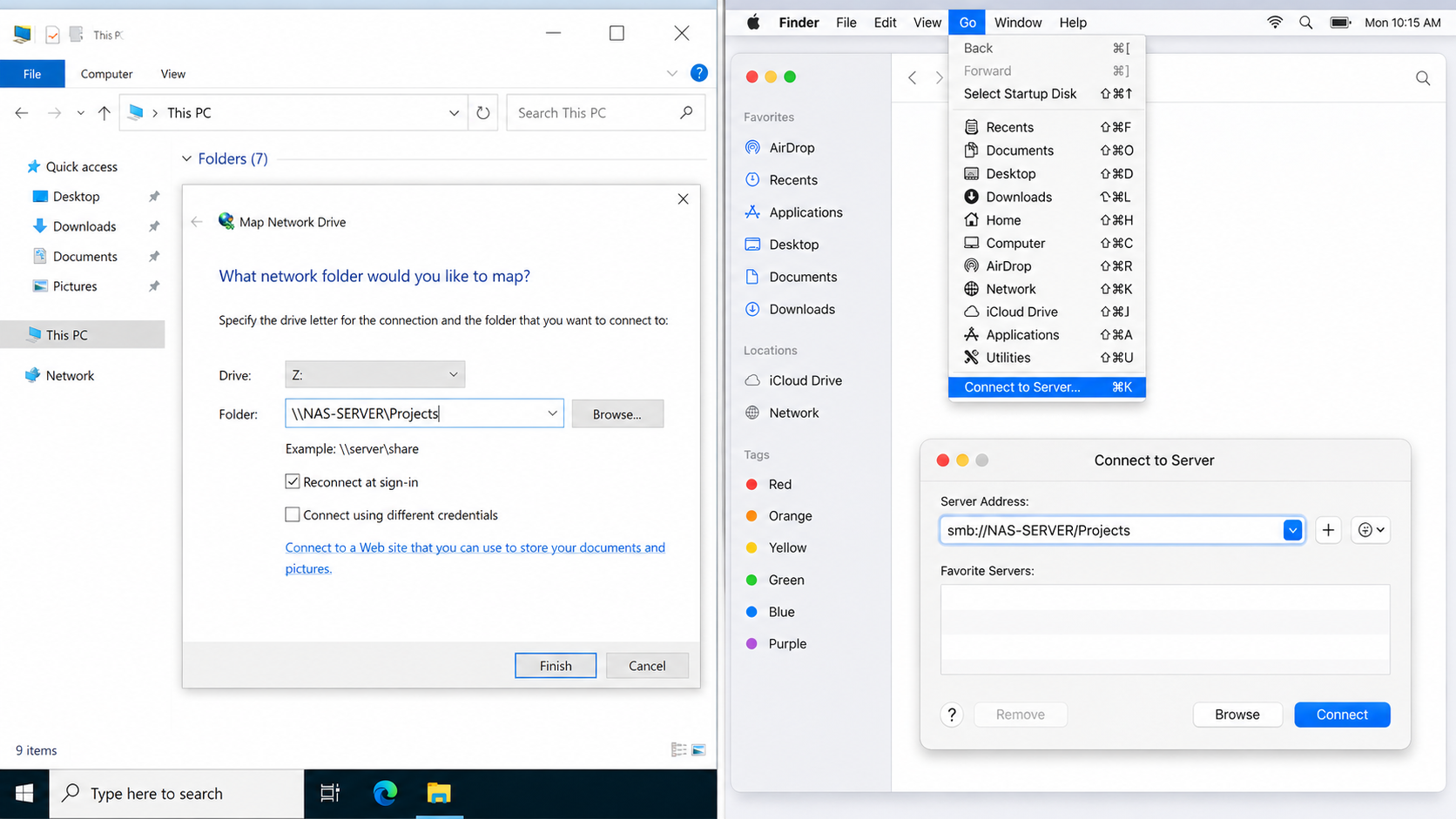

Step 5: Map the Network Drive

Windows: Use File Explorer
Mac: Use Finder
Connect the shared folder so it appears like a normal drive.

Step 6: Install or Open Backup Software

Use built-in tools such as:

  • File History
  • Windows Backup
  • Time Machine

Or install approved third-party backup software.

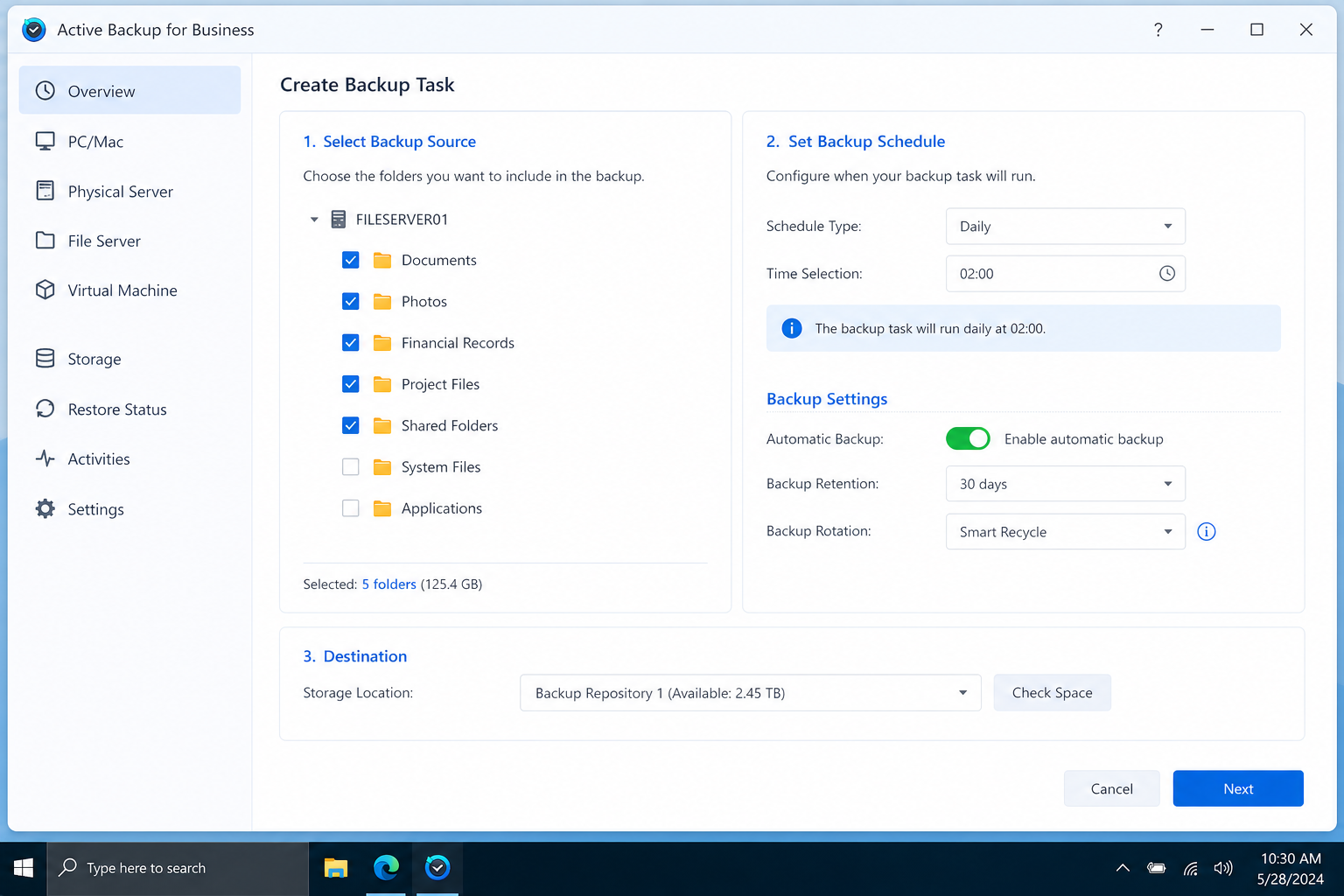

Step 7: Choose Files to Back Up

Select important folders such as:

  • Documents
  • Photos
  • Financial records
  • Project files
  • Shared business folders

Step 8: Set an Automatic Backup Schedule

Configure backups to run daily or weekly.

Step 9: Run Your First Backup

Start the first backup manually and allow it to complete.

Step 10: Verify the Backup

Confirm that files were copied successfully and can be restored when needed.

Advanced Setup

Step 1: Enable RAID Redundancy

If your NAS supports RAID, configure it to protect against a single drive failure.

Step 2: Set User Permissions

Restrict access using user accounts and folder permissions.

Step 3: Enable Version History

Keep multiple versions of files so older copies can be restored if files are changed or encrypted.

Step 4: Use Incremental Backups

After the first full backup, only copy changed files to save time and storage.

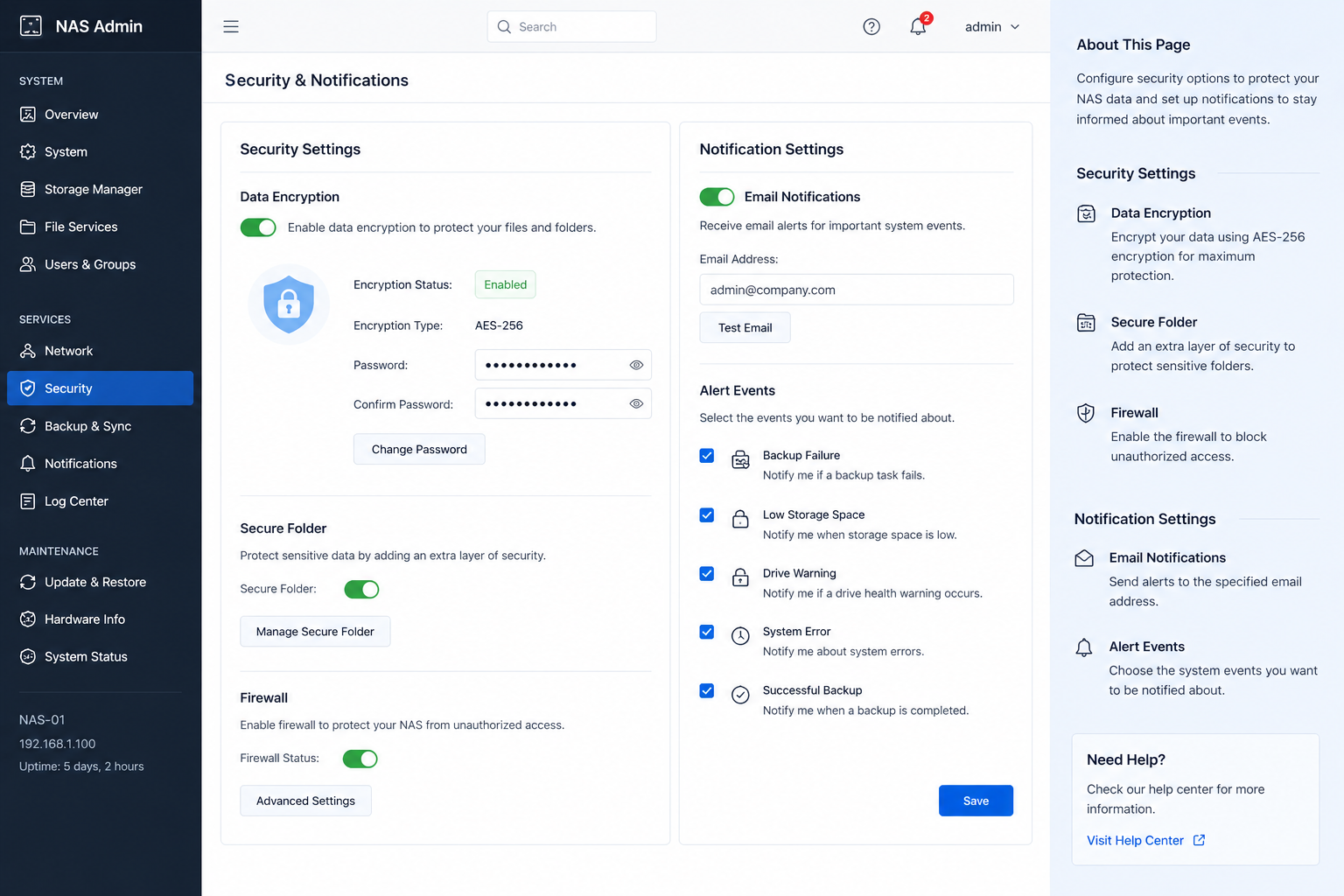

Step 5: Enable Notifications

Turn on email or app alerts for failed backups, drive issues, or low storage space.

Step 6: Encrypt Sensitive Data

Use encryption to protect confidential files stored on the backup device.

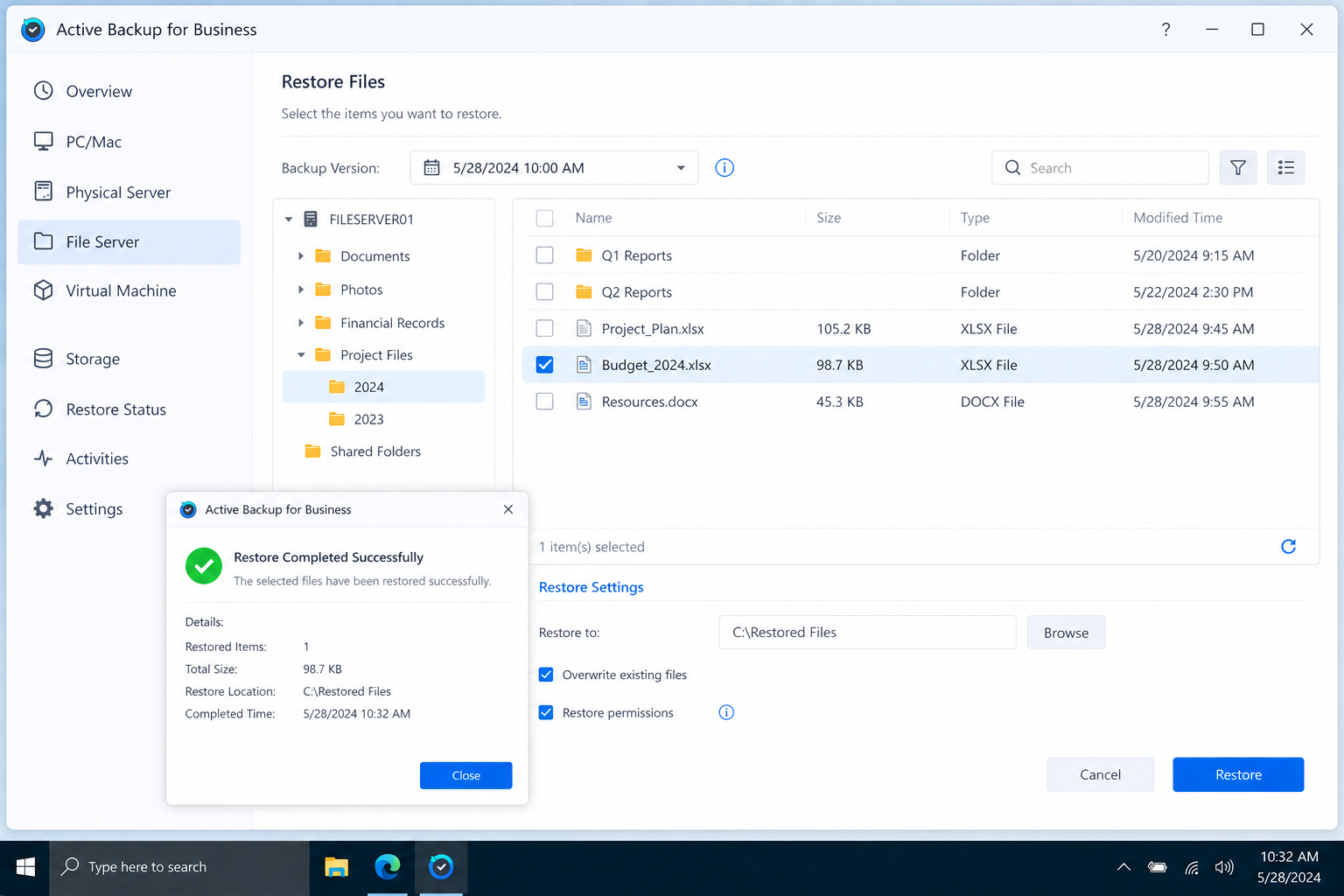

Step 7: Test File Restores Regularly

Restore sample files monthly to confirm backups are working.

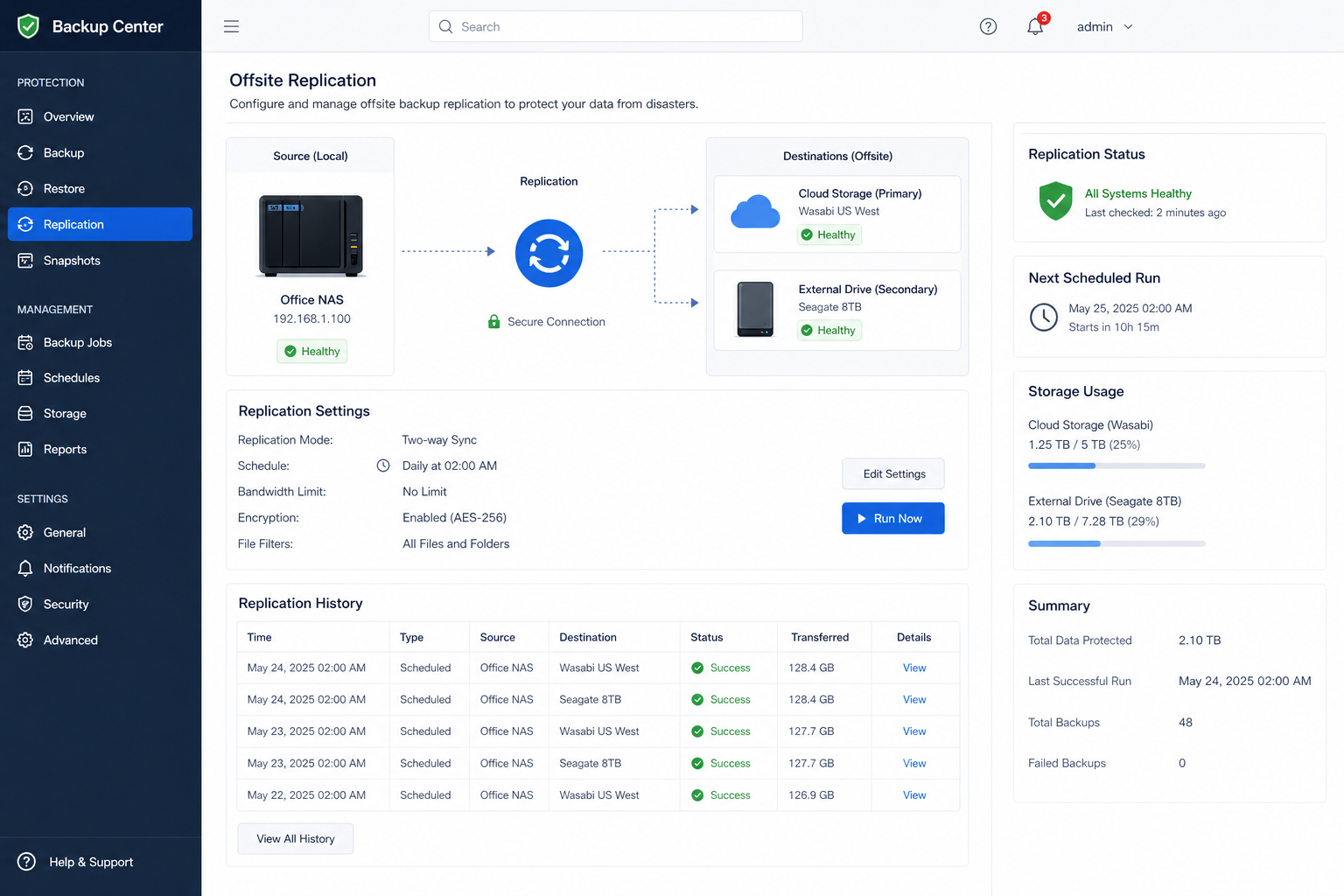

Step 8: Create an Offsite Backup Copy

Replicate critical backups to external drives or cloud storage for disaster recovery.

Resolving Backup Setup Errors

Beginner Troubleshooting

Backup Cannot Find Storage Device

  • Ensure the device is powered on.
  • Check cables and network connections.
  • Confirm both devices are on the same network.

Login or Permission Errors

  • Verify your username and password.
  • Check folder permissions.
  • Confirm write access is enabled.

Backups Are Too Slow

  • Use Ethernet instead of Wi-Fi.
  • Run backups outside business hours.
  • Remove unnecessary folders from the backup job.

Not Enough Storage Space

  • Delete outdated backups.
  • Upgrade storage capacity.
  • Enable compression or incremental backups.

Missing Files in Backup

  • Review selected folders.
  • Check file exclusions.
  • Re-run the backup and inspect logs.

Advanced Troubleshooting

  • Assign a Static IP Address
    Prevent connection issues caused by changing IP addresses after router restarts.
  • Check NAS Health Status
    Review SMART diagnostics, drive temperature, and storage health reports.
  • Use SMB/NFS Correctly
    • SMB: Best for Windows systems
    • NFS: Common for Linux environments
  • Automate with Scripts
    Use PowerShell, rsync, or Bash scripts for custom backup tasks.
  • Segment Backup Traffic
    Use VLANs or dedicated backup windows to reduce network congestion.
  • Test Disaster Recovery Plans
    Simulate failures and measure recovery time.
  • Update Firmware
    Keep NAS firmware and backup software updated for security and reliability.

Storage Considerations

  • Ensure enough free space before starting large backups.
  • Keep the storage device powered on during scheduled backup times.
  • The first backup may take much longer than future backups.
  • Always use strong passwords for shared storage devices.
  • Review logs regularly to catch hidden failures.
  • Test restores often to confirm backups are usable.
  • Local backups do not protect against theft, fire, or flooding. Keep an offsite copy as well.
  • Enable snapshots or version history to reduce ransomware risks.
  • Avoid firmware updates during business-critical hours.
  • Do not reset the device without recording custom settings first.

Setup Questions

What is a NAS device?
A NAS (Network Attached Storage) device is a storage system connected to your network that allows multiple devices to store and access files.
How often should I back up files?
Daily backups are best for frequently changing files. Weekly backups may be enough for less active data.
Can I back up multiple computers to one NAS?
Yes. Most NAS devices support multiple users and devices.
Is Ethernet better than Wi-Fi?
Yes. Ethernet is faster, more stable, and better for large backup jobs.
What is the difference between full and incremental backups?
A full backup copies all selected data. Incremental backups only copy files changed since the last backup.
Can I restore deleted files?
Yes, if the files were included in previous backups or version history.
What if the NAS drive fails?
RAID may help with single-drive failure, but an additional offsite backup is still recommended.
How do I know backups are working?
Review backup reports, logs, and perform regular test restores.

Backup Setup Complete

Setting up local network storage backups helps protect valuable files, improves recovery speed, and reduces the risk of permanent data loss. By combining automatic schedules, regular testing, secure access controls, and offsite copies, you can build a dependable backup solution for home or business use. If you continue to experience issues with setup, failed backups, or file recovery, please contact Swazzy Support for further assistance.
