Set Up System Image Backups
A system image backup creates a complete copy of your operating system, installed applications, settings, and files. It provides a reliable way to recover your computer after hardware failure, malware infections, system corruption, or other major issues while helping minimize downtime.
Configure a System Image Backup
Step 1: Choose a Backup Location
Select where you want to store your system image backup. Common options include:
- External hard drive or SSD
- Network Attached Storage (NAS)
- Shared network folder
- Cloud storage (if supported by your backup software)
Step 2: Verify Available Storage Space
Make sure the backup destination has sufficient free space.
Step 3: Prepare the Backup Device
- Connect the external drive or access the network location.
- Confirm that the storage device is recognized by your computer.
- Format the drive if required.

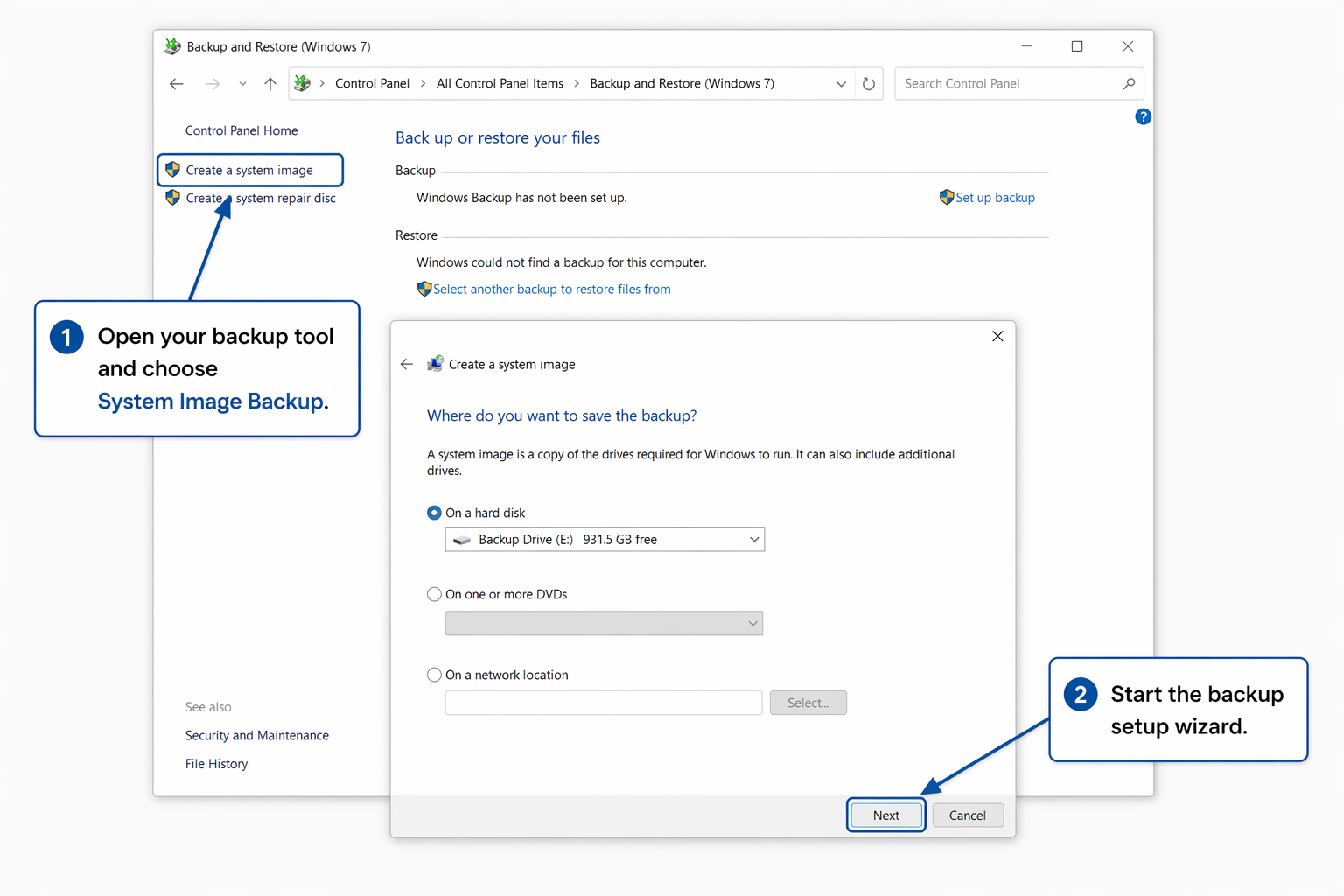

Step 4: Open Your Backup Software
Launch either:
- Your operating system's built-in backup utility, or
- A trusted third-party backup application
Step 5: Select a Full System Backup
Choose the option labeled System Image, Full System Backup, or similar.
A complete system image should include:
- Operating system files
- Installed applications
- System settings
- Personal files

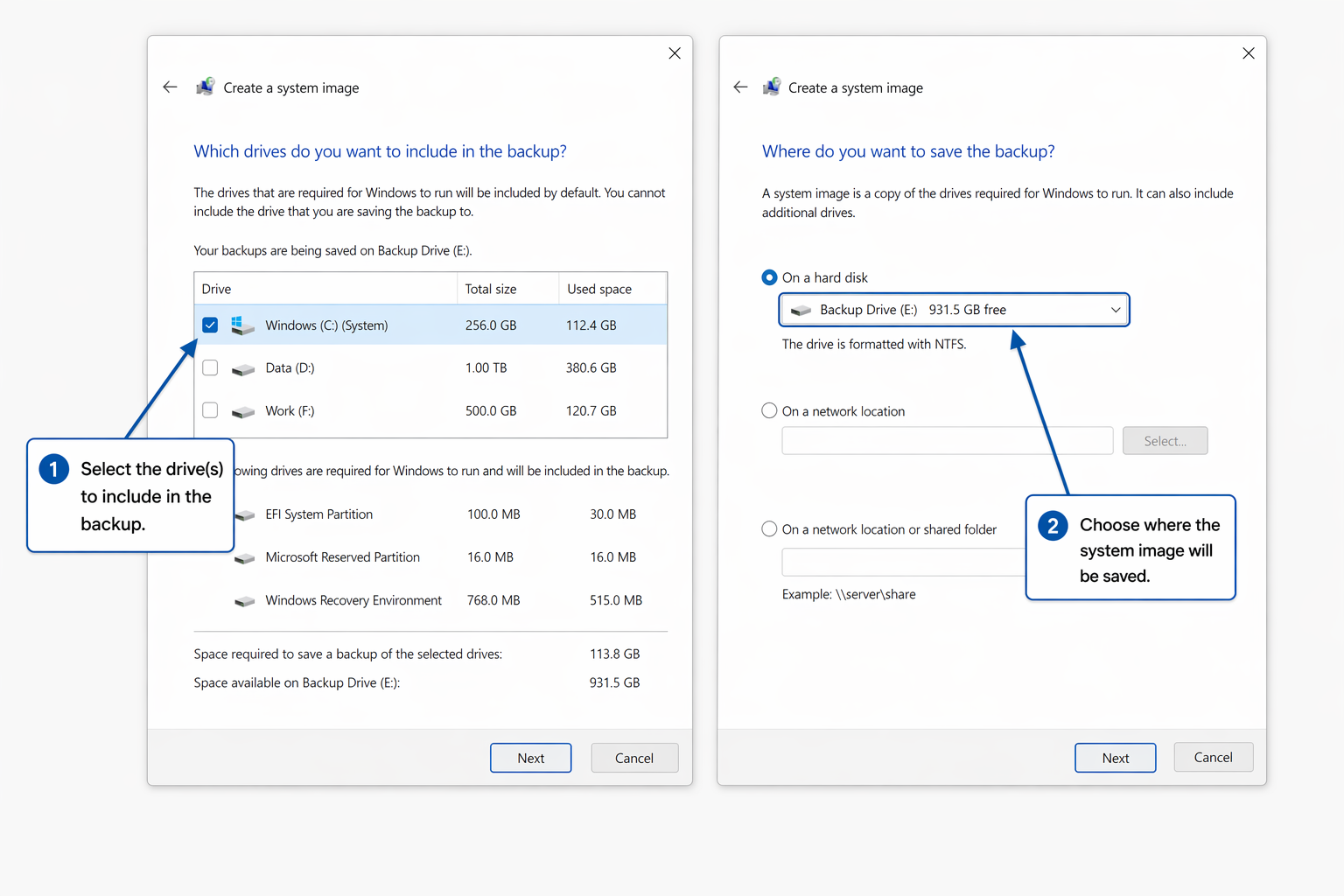

Step 6: Confirm Source Drives
Most backup tools automatically include the required system partitions.
If needed, advanced users can add additional drives or partitions based on recovery requirements.
Step 7: Select the Backup Destination
Choose the external drive, NAS device, shared folder, or cloud storage location where the image will be saved.

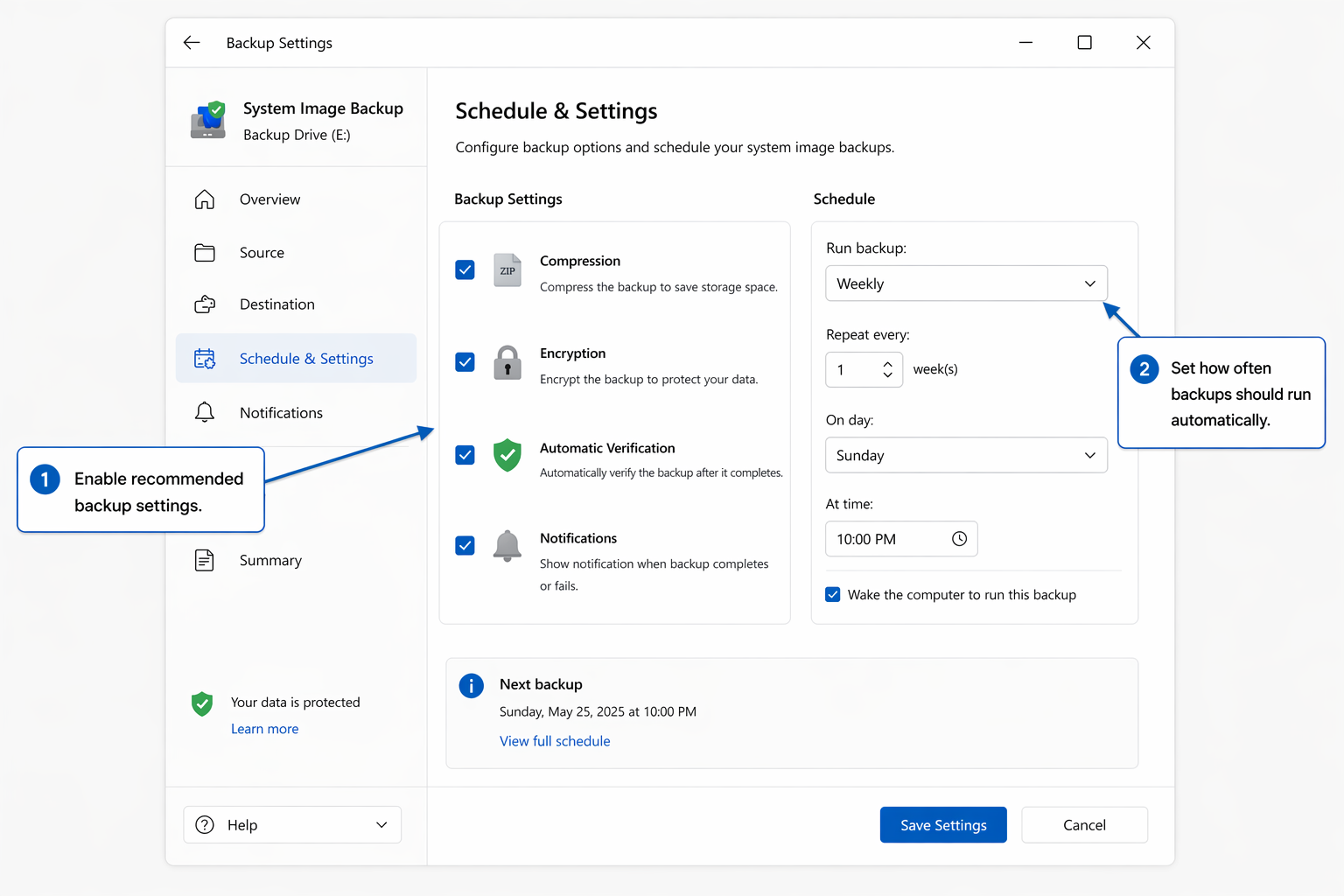

Step 8: Configure Backup Options
Recommended settings include:
- Compression to reduce storage usage
- Encryption to protect sensitive data
- Automatic backup verification
- Email or application notifications
Step 9: Schedule Regular Backups
Set a schedule that matches how frequently your system changes:
- Daily – Systems with frequent updates or business-critical data
- Weekly – Most users and standard workstations
- Monthly – Light-use or infrequently changed systems
Step 10: Run the Initial Backup
Start the backup process and allow it to complete without interruption.

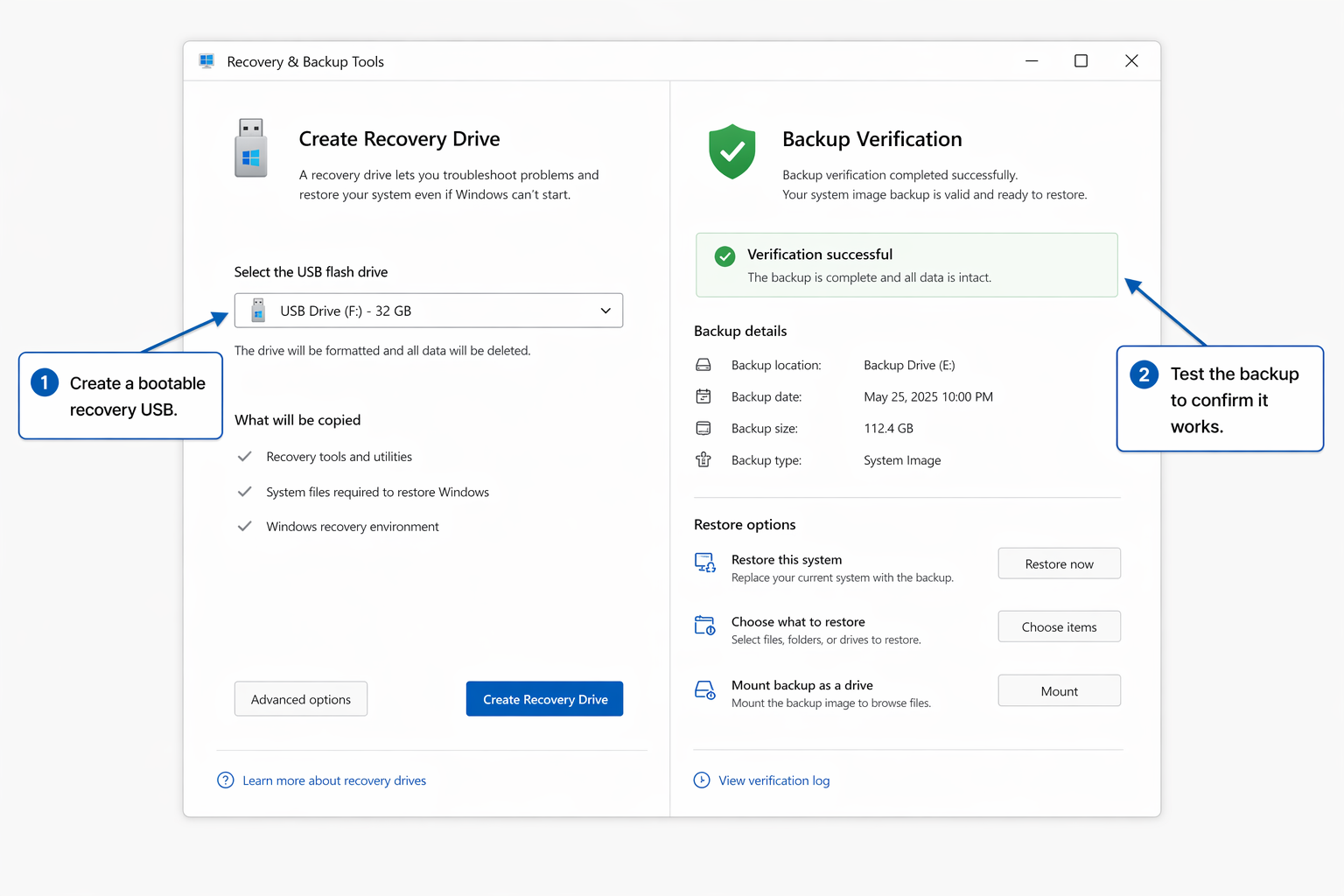

Step 11: Create Recovery Media
Create a bootable USB drive or recovery disc. This allows you to restore the system image even if the computer cannot start normally.
Step 12: Verify the Backup
Use the backup software's verification feature or perform a recovery simulation to confirm the image is usable.
For additional validation, advanced users may test the backup by restoring it to:
- A spare computer
- A virtual machine
- A secondary drive
Step 13: Store Backups Securely
Whenever possible, follow the 3-2-1 backup rule:
- Keep 3 copies of your data
- Store copies on 2 different types of media
- Maintain 1 copy offsite
Troubleshooting Backup Configuration Issues
Start with These Quick Checks
- Restart your computer and run the backup again.
- Reconnect the backup device and verify it is detected correctly.
- Free up storage space if the destination drive is nearing capacity.
- Run the backup software as an administrator to ensure it has access to system files.
- Close unnecessary applications that may interfere with the backup process.
- Check your network or internet connection when backing up to NAS devices, shared folders, or cloud storage.
Resolve Common Backup Failures
Check Disk Health
Run your operating system's disk repair utility to identify and repair file system errors or bad sectors.
Review Backup Logs
Examine the backup software's logs for error messages, warnings, or failed tasks that may indicate the cause of the problem.
Verify Snapshot Services
Ensure services such as the Volume Shadow Copy Service (VSS) are enabled and running correctly.
Update Drivers and Firmware
Install the latest storage drivers, chipset drivers, and firmware updates for improved stability and compatibility.
Exclude Unnecessary Partitions
Remove temporary, unused, or non-essential drives from the backup job if they are not required for recovery.
Test Network Performance
Slow or unstable network connections can interrupt backups to NAS devices or shared network locations.
Retain Multiple Backup Versions
Keeping older backup images provides an additional recovery option if the most recent backup becomes corrupted.
Perform a Test Restore
A successful test restore is the most reliable way to confirm that your backup can be used during an actual recovery.
Helpful Notes and Warnings
- The initial full backup is typically the largest and may take significantly longer to complete.
- Keep laptops connected to a power source during backup operations.
- Never disconnect a backup drive or network location while a backup is running.
- Use encryption whenever possible, particularly for portable storage devices.
- System image backups should complement, not replace, regular file backups.
- Maintain multiple backup copies to improve protection against hardware failure and corruption.
- Test your recovery process periodically to ensure backups remain usable.
- Store backups securely to protect against theft, accidental deletion, ransomware, and physical damage.
Frequently Asked Questions
Conclusion
Regular system image backups provide a dependable recovery option when serious system issues occur. Keep backups current, store them securely, and test them periodically to ensure they are ready when needed. If you need assistance creating, managing, or restoring a system image backup, please contact Swazzy Support.
