How to Set Up and Fix a Second Monitor for Better Productivity

How to Set Up and Fix a Second Monitor for Better Productivity

Adding a second monitor can boost productivity by giving you more space to work, but setup issues like incorrect cables or display settings can cause frustration. This guide will show you how to connect, configure, and troubleshoot a second monitor quickly and easily.

Steps to Complete the Setup

For Beginners (Basic Setup – Plug & Play)

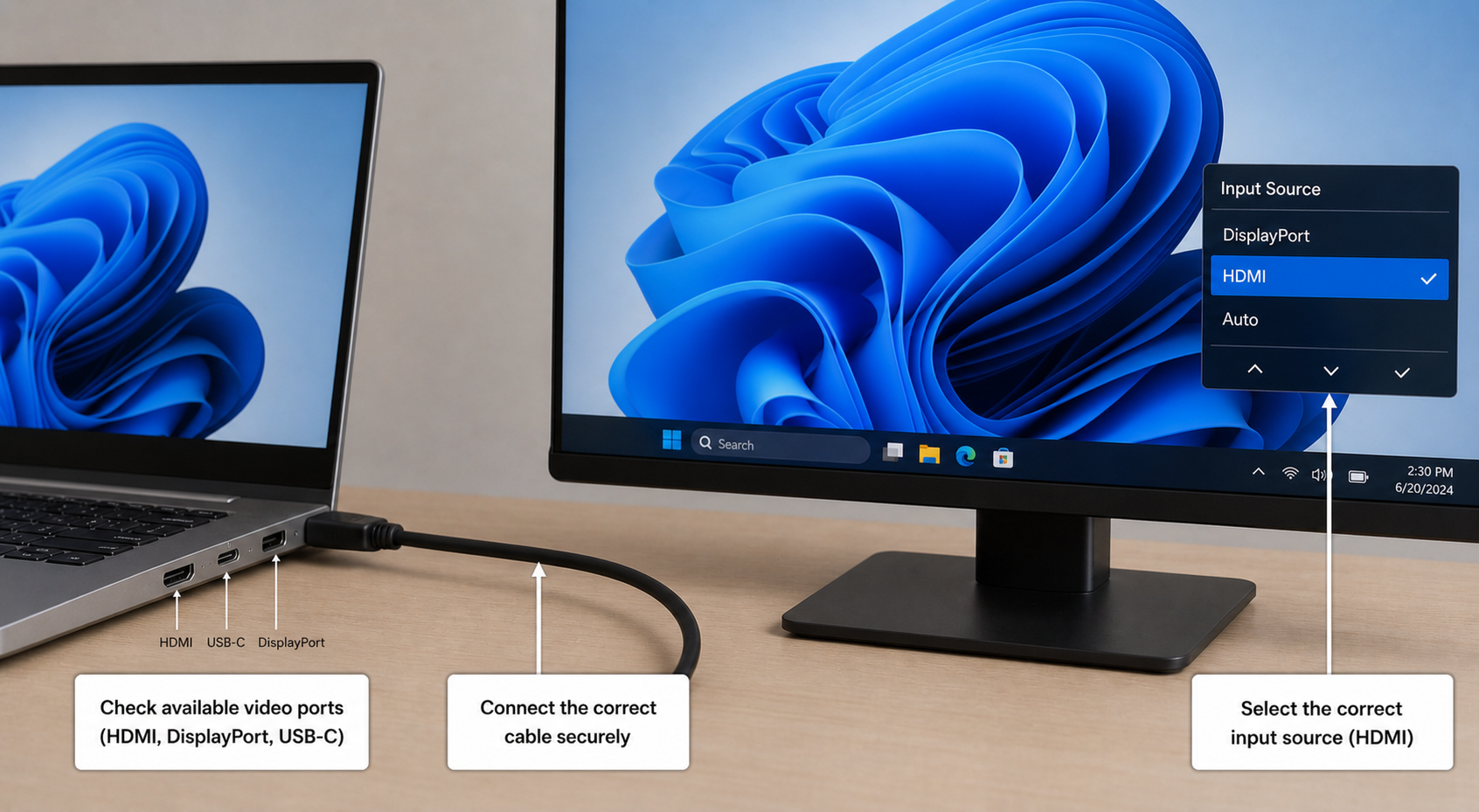

Step 1: Check Available Ports

Identify the video ports on your computer and monitor, such as HDMI, DisplayPort, VGA, or USB-C.

Step 2: Connect the Monitor

Plug the correct cable securely into both your computer and the second monitor.

Step 3: Power On the Monitor

Turn it on and select the correct input source, such as HDMI or DisplayPort.

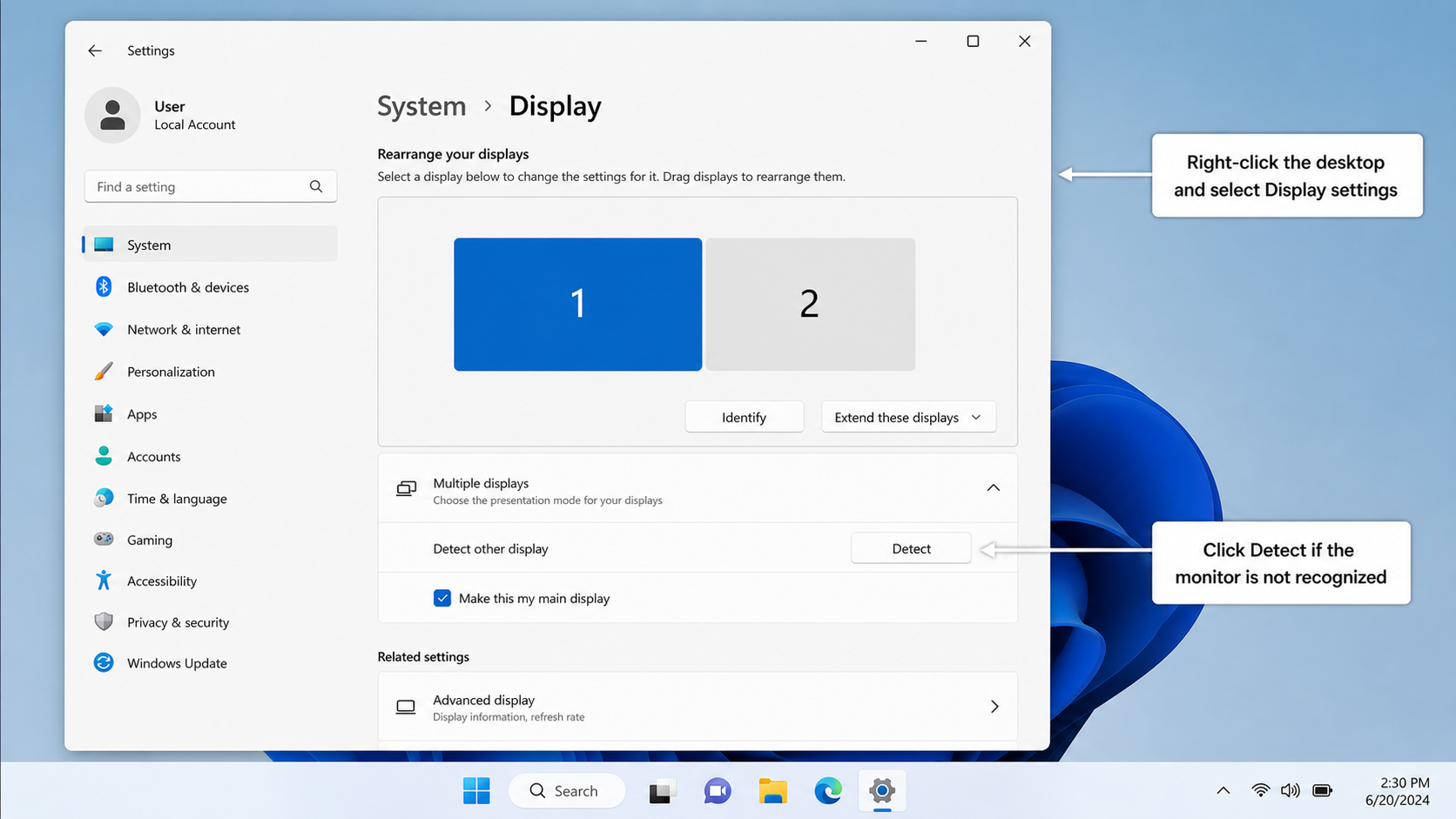

Step 4: Open Display Settings

Right-click your desktop and select Display settings.

Step 5: Detect the Monitor

Scroll down and click Detect if the monitor isn’t recognized automatically.

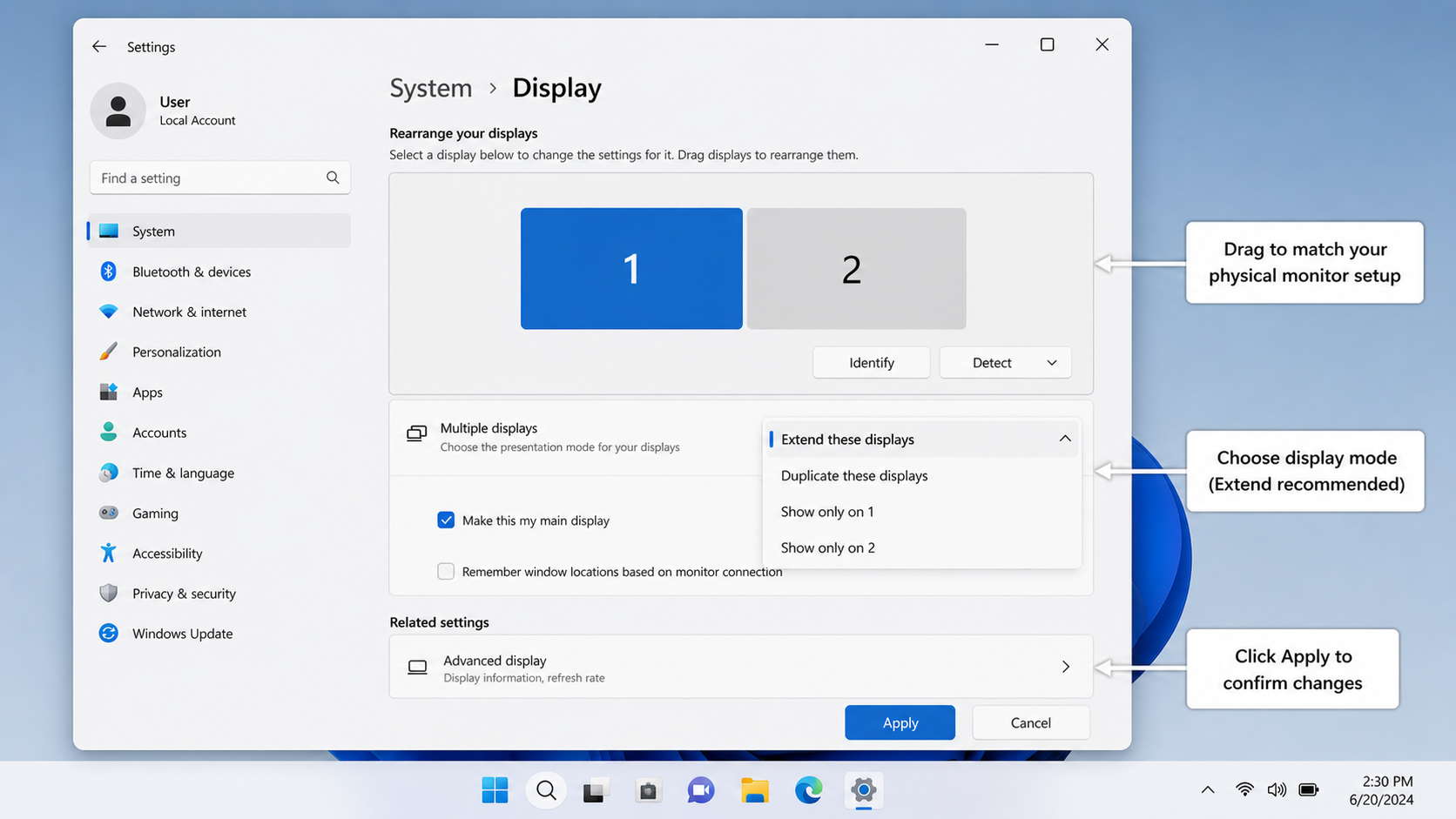

Step 6: Choose a Display Mode

Under Multiple displays, select:

  • Extend (recommended for multitasking)
  • Duplicate (mirror your screen)
  • Second screen only

Step 7: Arrange Your Displays

Drag and position the monitors to match your physical setup.

Step 8: Apply Changes

Click Apply and confirm.

For Intermediate & Advanced Users (Optimization & Setup)

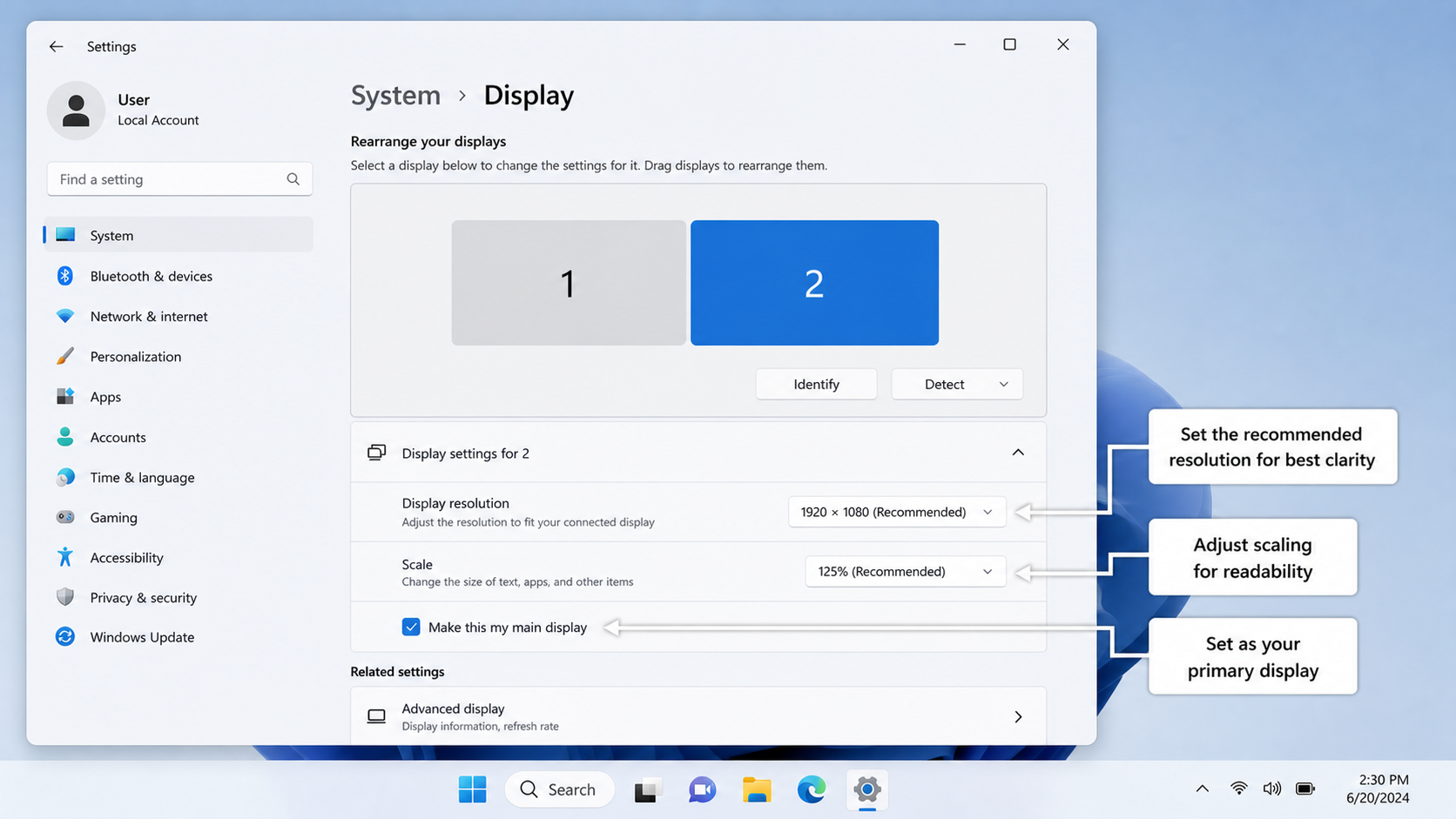

Step 9: Adjust Resolution and Scaling

Set each monitor to its recommended resolution and adjust scaling for clarity.

Step 10: Set Your Primary Display

Select your preferred monitor and enable Make this my main display.

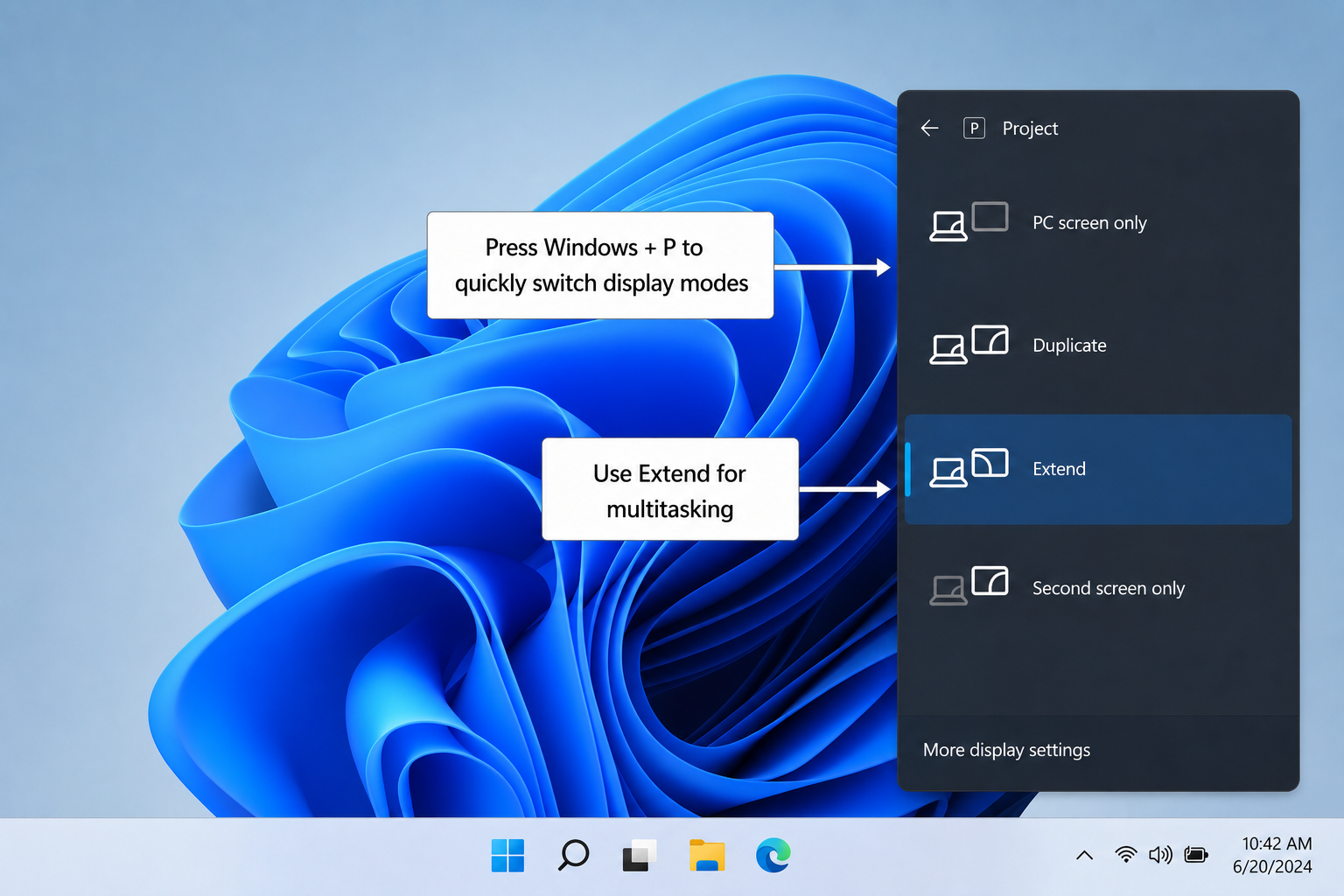

Step 11: Use Keyboard Shortcuts

Press Windows + P to quickly switch display modes.

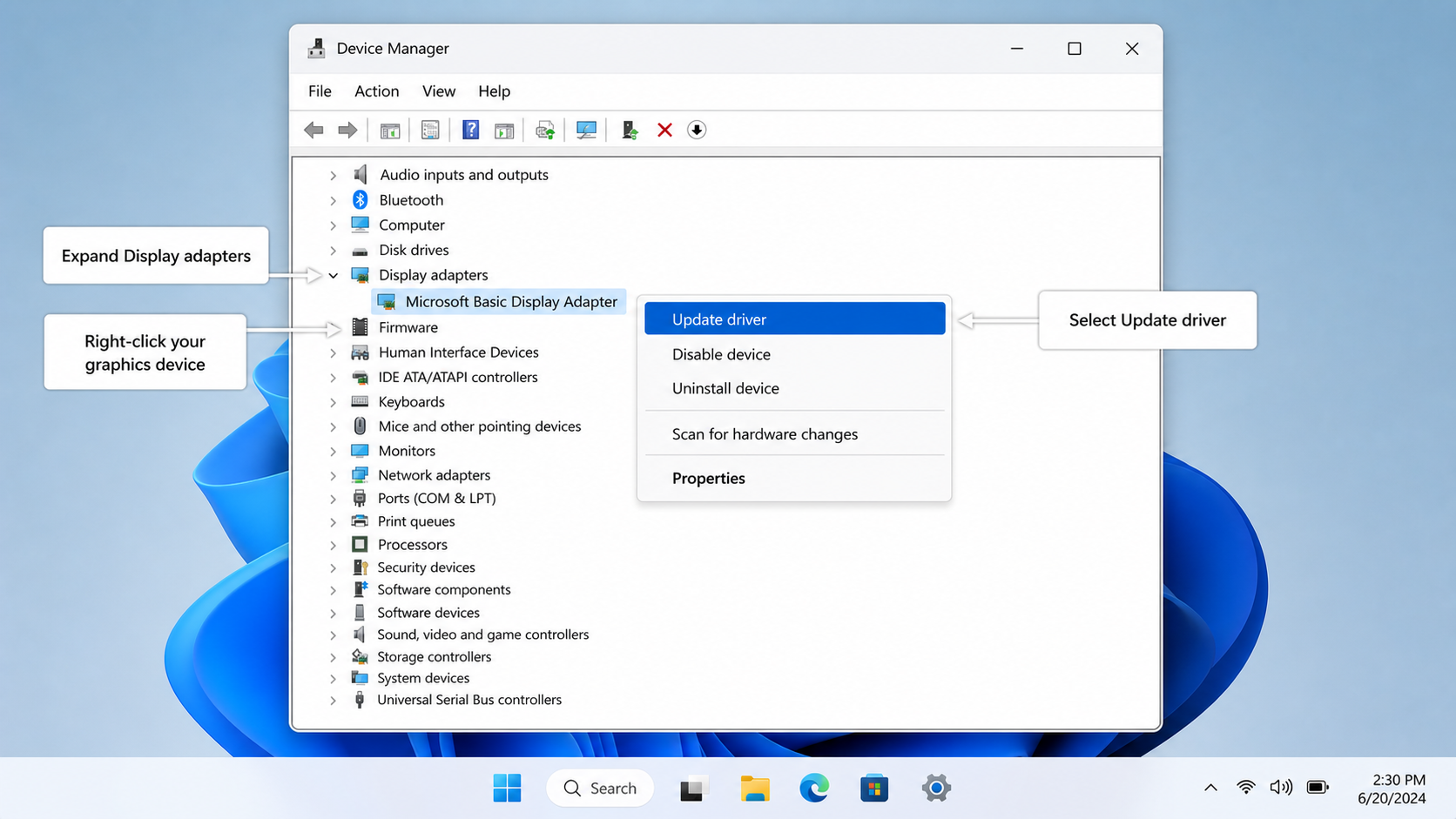

Step 12: Update Graphics Drivers

Go to Device Manager → Display adapters, right-click your device, and select Update driver.

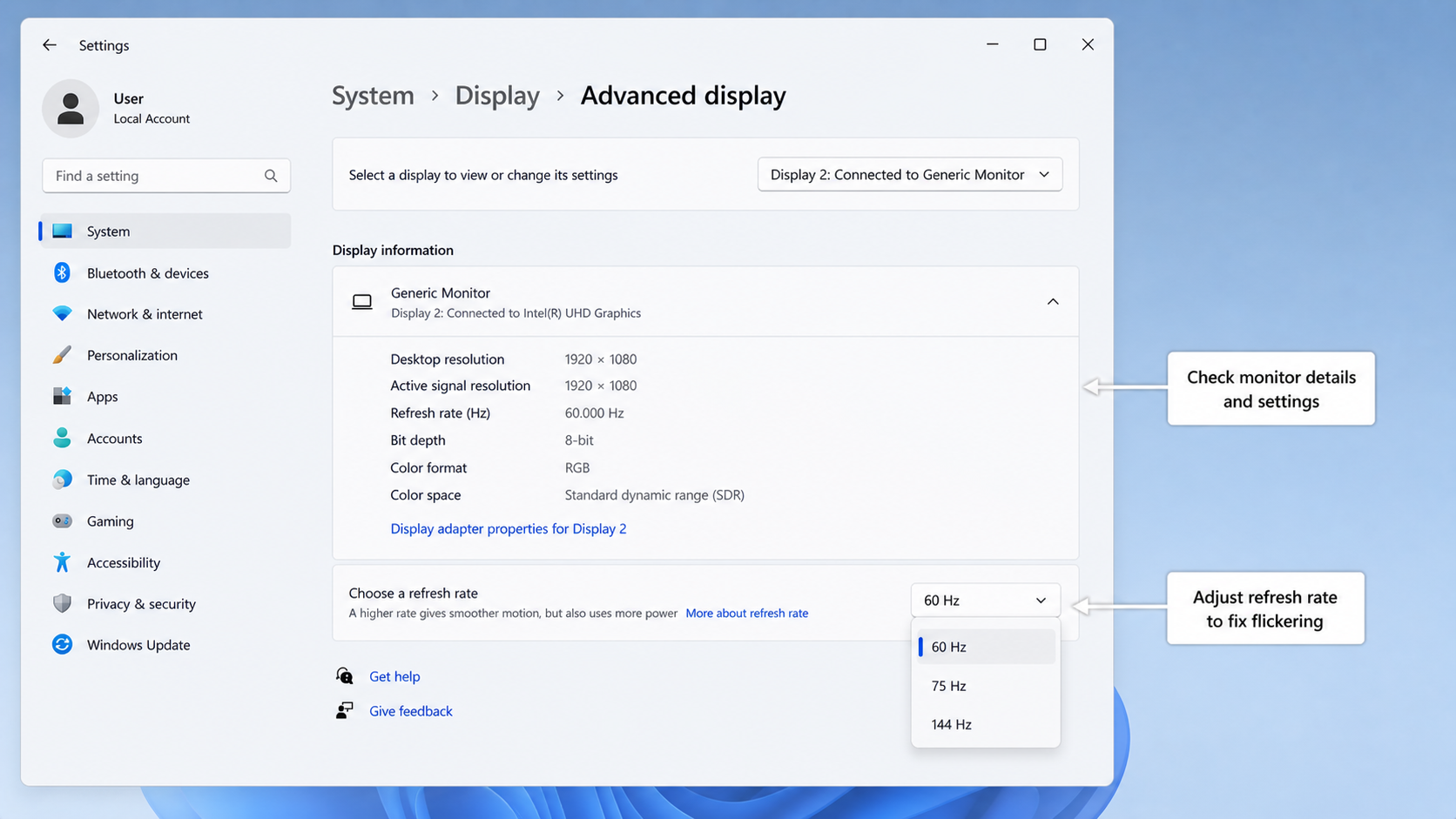

Step 13: Configure Advanced Settings

Open Advanced display settings to adjust refresh rate and color settings.

Step 14: Check Cable Compatibility

Ensure your cable supports your desired resolution, such as HDMI 2.0 for 4K.

Test the Device

Second Monitor Testing Checklist

  • Check the monitor input source (HDMI/DisplayPort/VGA)

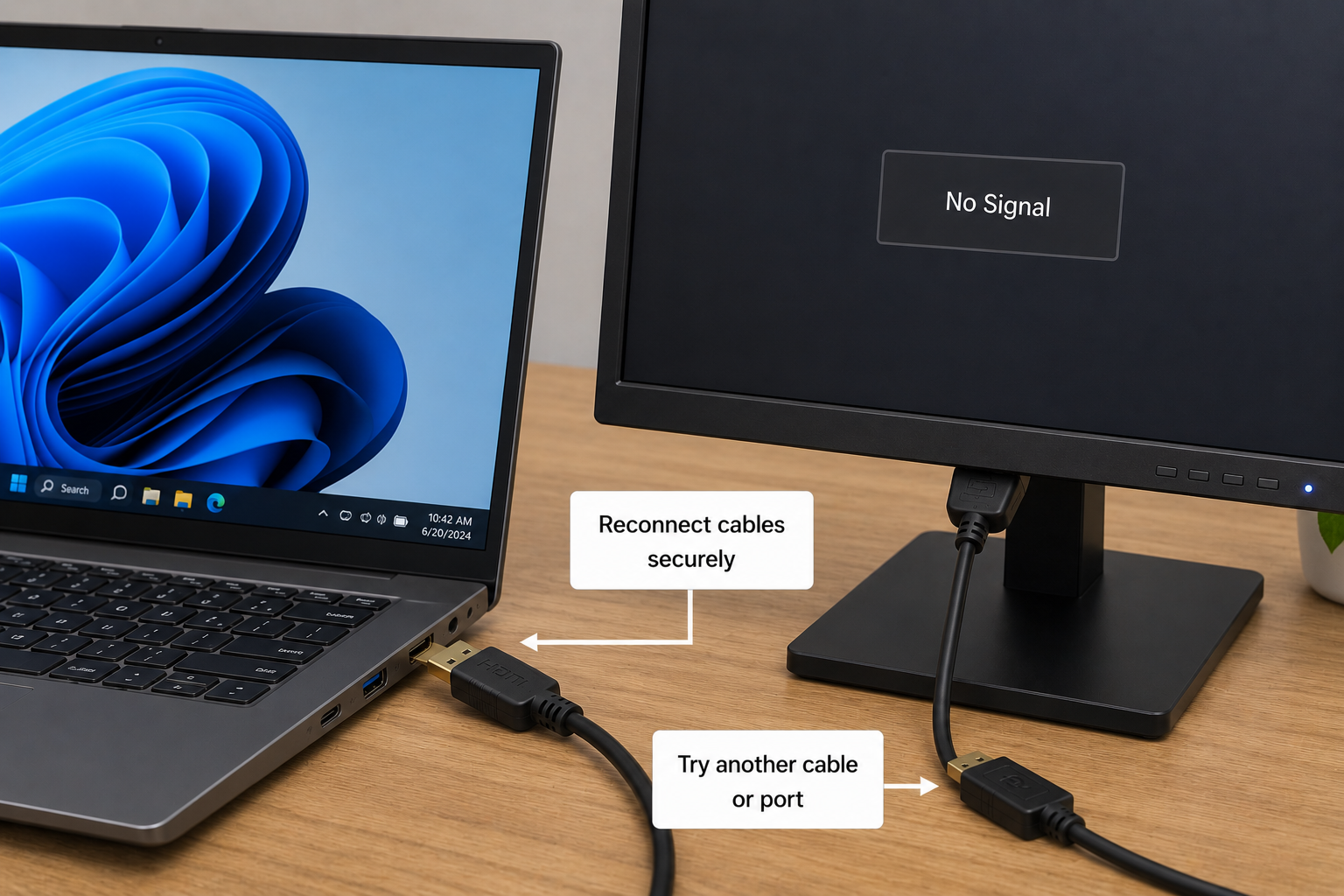

  • Reconnect cables securely on both ends
  • Restart your computer to refresh detection
  • Try a different cable or port
  • Update or reinstall graphics drivers
  • Click Detect in Display settings
  • Confirm your system supports multiple displays
  • Lower refresh rate if you experience flickering
  • Test the monitor on another device
  • Use a docking station if your laptop has limited ports

Device Setup Troubleshooting

  • Update your graphics card drivers from the manufacturer (e.g., NVIDIA, AMD, or Intel)
  • Check BIOS/UEFI display settings for multi-monitor support
  • Disable and re-enable the display adapter in Device Manager
  • Reset display settings by disconnecting all monitors and reconnecting them

Device Setup Tips

  • Turn off devices if you’re unsure, as this can help prevent connection issues
  • Do not force cables into ports
  • Ensure the monitor is plugged in and powered on
  • Use supported resolutions to avoid blank screens
  • Be cautious with adapters, as some may not support high resolutions or audio
  • Secure all connections to prevent flickering or signal loss
  • Save your work before changing display settings

Device Setup FAQs

Why is my second monitor not detected?
This is often caused by loose cables, incorrect input source, or outdated drivers.
Can I use two different monitors?
Yes, but you may need to adjust resolution and scaling for each.
What display mode should I use?
Use Extend for multitasking and Duplicate for presentations.
Why is the resolution incorrect?
Check display settings and ensure you’re using the correct cable and recommended resolution.
Can I connect more than two monitors?
Yes, depending on your graphics card and available ports.
How do I make one monitor my main screen?
Go to Display settings and enable Make this my main display.
Why is my screen flickering?
This may be caused by a faulty cable, incorrect refresh rate, or driver issues.
Do monitors need drivers?
Most work automatically, but manufacturer drivers can improve performance.

Next Steps After Setup

Setting up a second monitor is a simple way to improve productivity and workspace efficiency. By following the steps above, you can quickly connect, configure, and optimize your display setup.

If your second monitor still isn’t working after trying these steps, contact Swazzy Support for further assistance. Their team can help resolve more advanced or hardware-specific issues.
